Low Temperature -40°C Rechargeable NiCd Battery Cell 1.2v 10ah With Long Cycle Life
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 2 Years | Chargeable: | Yes |
|---|---|---|---|
| Application: | Uninterruptible Power Supplies | Weight: | 365g |
| Cycle Life: | 500 Cycles | The Charging Ratio: | 0.1C |
| The Discharge Rate: | 0.2C | Nominal Voltage: | 1.2v |
| Battery Type: | M | Capacity: | 10000mah |
| Cycle Life: | 500cycles | Type: | NICKEL CADMIUM |
| Port: | Qingdao |
Product Overview

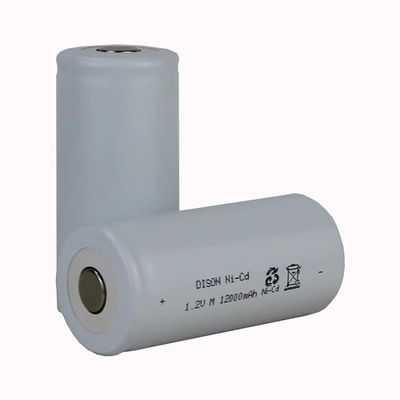

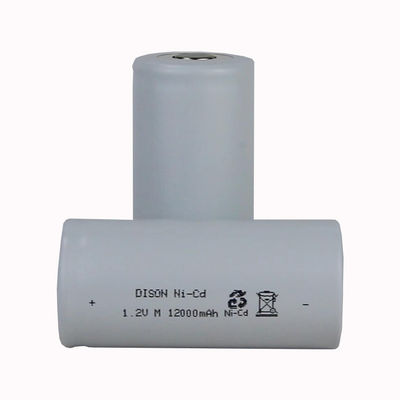

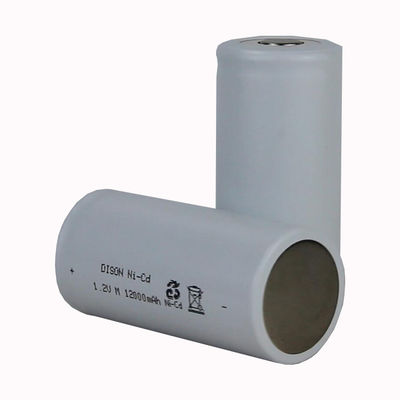

NiCd battery cell M 1.2V 10ah minus 40 degree low temperature rechargeable battery
*Nickel batteries have the characteristics of low internal resistance and high working voltage during big current discharge, so Nickel batteries are used widely.
*NiCd battery provide long term storage life with few limiting conditions. It can be recharged after long time storage.
*Nickel batteries accept rapid charge and can be fully charged in 1.2 hours.
*NiCd battery provide long term storage life with few limiting conditions. It can be recharged after long time storage.
*Nickel batteries accept rapid charge and can be fully charged in 1.2 hours.
*DISON NiCD battery can be used at extreme temperature range (-40 degree~55 degree), the high temperature type can be used at 70 degree.
Application
DISON products are widely used in fire emergency lighting, solar street lighting, State Grid,
communication, energy storage, 5G station, medical, electric tools, electric bicycle, electric vehicle, drone, AI and many other fields. As battery enterprise, DISON participated in the drafting and relevant testing of the national standard<GB17945-2010 fire emergency lighting and evacuation indication system>.
More than 90% of the emergency lighting of the national key projects are equipped with DISON batteries. The 12 main venues of the 29th Beijing Olympic Games, such as the bird's nest, water cube, Beijing West Railway Station, South Railway Station and capital airport are equipped with DISON batteries.
More than 90% of the emergency lighting of the national key projects are equipped with DISON batteries. The 12 main venues of the 29th Beijing Olympic Games, such as the bird's nest, water cube, Beijing West Railway Station, South Railway Station and capital airport are equipped with DISON batteries.
Product Specification
|
Model |
Rated Voltage (V) |
Rated Capacity (mAh) |
(D)
Diameter |
(H)
Height |
Max Weight (g) |
Foreign Standard |
|
KRH15/30
|
1.2
|
300
|
14.5
|
29.0±0.5
|
12
|
2/3AA
|
|
KRH15/51
|
1.2
|
600
|
14.5
|
49.0±0.5
|
20
|
AA
|
|
|
1.2
|
700
|
14.5
|
49.0±0.5
|
21
|
AA
|
|
|
1.2
|
800
|
14.5
|
49.0±0.5
|
22
|
AA
|
|
|
1.2
|
1000
|
14.5
|
49.0±0.5
|
25
|
AA
|
|
KRH17/50
|
1.2
|
1400
|
17.0
|
49.5±0.5
|
32
|
A
|
|
KRH21/50
|
1.2
|
2000
|
20.5
|
49.0±0.5
|
45
|
K
|
|
KRH23/43
|
1.2
|
1600
|
22.5
|
42.5±0.5
|
49
|
SC
|
|
|
1.2
|
1800
|
22.5
|
42.5±0.5
|
51
|
SC
|
|
|
1.2
|
2000
|
22.5
|
42.5±0.5
|
54
|
SC
|
|
KRH26/51
|
1.2
|
2500
|
25.5
|
49.5±0.5
|
70
|
C
|
|
|
1.2
|
2800
|
25.5
|
49.5±0.5
|
74
|
C
|
|
|
1.2
|
3000
|
25.5
|
49.5±0.5
|
76
|
C
|
|
KRH33/62
|
1.2
|
4000
|
32.0
|
59.5±0.5
|
138
|
D
|
|
|
1.2
|
4500
|
32.0
|
59.5±0.5
|
140
|
D
|
|
|
1.2
|
5500
|
33.0
|
59.5±0.5
|
146
|
D
|
|
KRH33/91
|
1.2
|
8000
|
33.0
|
90.5±0.5
|
228
|
F
|
|
KRH44/91
|
1.2
|
12000
|
43.0
|
90.5±0.5
|
365
|
M
|
Certifications
Why Choose Us
Company Profile
Dison group was founded in 1993, with area of 102000 m2, building area of 66000 m2, total asset of 1050 million RMB and 770 employees. DISON has more than 10 fully automated advanced production lines of lithium-ion batteries and Nickel batteries, with annual output of more than 150 million cells and 300,000 military use battery packs. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources). DISON batteries are exported to United States, Germany, UK, Australia, Singapore, South Korea, Middle East and Hong Kong etc. At present, DISON + 70℃ high temperature battery has a certain market share in United States and Europe. And signed long-term strategic cooperation agreements with ABL, Pelican, IBS, AZ, Samsung etc.
