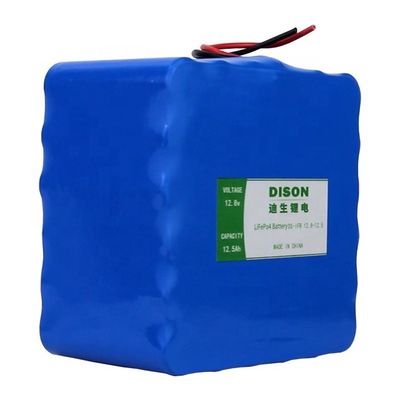

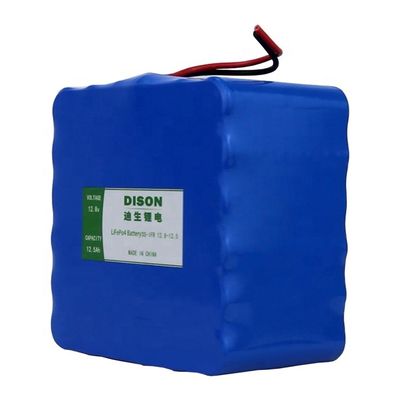

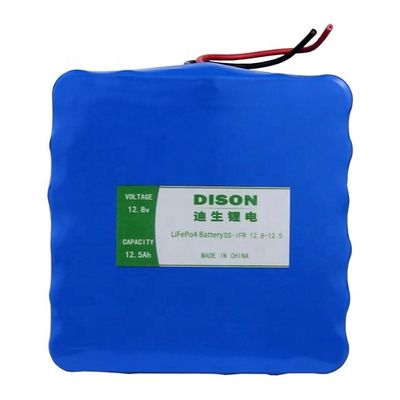

Low temperature 12.8V 12.5Ah 160Wh LiFePo4 Lithium Ion Phosphate Battery Pack for Solar Street Lighting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery Size: | 18650 | Weight: | 872g |
|---|---|---|---|
| The Charging Ratio: | 1C | The Discharge Rate: | 2C |
| Anode Material: | LFP | Application: | Solar Energy Storage Systems, Uninterruptible Power Supplies, Street Lighting, Solar Street Lights |
| Battery Type: | Lifepo4 Battery | Product Name: | LFP Lithium Ion Battery Pack |
| Capacity: | 12.5Ah | Nominal Voltage: | 12.8Volt |
| Cycle Life: | 2000 Cycles | Internal Resistance: | 50(mΩ) |
| Max Discharge Rate: | 2C | Warranty: | 5years |
| Chargeable: | Yes | Port: | Qingdao |
Product Overview
LFP 12.8v 12.5Ah 160Wh LiFePo4 Lithium ion phosphate battery pack for solar street lighting
*Using LiFePo4 as cathode material, cell voltage is 3.2V, platform capacity can reach more than 90%;
*LiFePo4 lithium ion Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
*LiFePo4 lithium ion Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
Application
LiFePo4 lithium ion phosphate battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in Fire emergency lights, Solar street lighting, National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch,UPS, solar energy storage. etc.
Product Specification
|
Type |
Nominal Voitage (V) |
Typical capacity (Ah) |
Charge temp
|
Work temp
|
Weight
Max Weight (g) |
|
DS-RF 12.8-3
|
12.8
|
3
|
0℃-+55℃
|
-40℃-+70℃
|
≥248
|
|
DS-RF 12.8-4.5
|
12.8
|
4.5
|
0℃-+55℃
|
-40℃-+70℃
|
≥352
|
|
DS-RF 12.8-6
|
12.8
|
6
|
0℃-+55℃
|
-40℃-+70℃
|
≥456
|
|
DS-RF 12.8-7.5
|
12.8
|
7.5
|
0℃-+55℃
|
-40℃-+70℃
|
≥560
|
|
DS-RF 12.8-9
|
12.8
|
9
|
0℃-+55℃
|
-40℃-+70℃
|
≥664
|
|
DS-RF 12.8-12
|
12.8
|
12
|
0℃-+55℃
|
-40℃-+70℃
|
≥872
|
|
DS-RF 12.8-15
|
12.8
|
15
|
0℃-+55℃
|
-40℃-+70℃
|
≥1080
|
|
DS-RF 12.8-18
|
12.8
|
18
|
0℃-+55℃
|
-40℃-+70℃
|
≥1288
|
|
DS-RF 12.8-21
|
12.8
|
21
|
0℃-+55℃
|
-40℃-+70℃
|
≥1496
|
|
DS-RF 12.8-24
|
12.8
|
24
|
0℃-+55℃
|
-40℃-+70℃
|
≥1704
|
|
DS-RF 12.8-27
|
12.8
|
27
|
0℃-+55℃
|
-40℃-+70℃
|
≥1912
|
|
DS-RF 12.8-30
|
12.8
|
30
|
0℃-+55℃
|
-40℃-+70℃
|
≥2120
|
|
DS-RF 12.8-33
|
12.8
|
33
|
0℃-+55℃
|
-40℃-+70℃
|
≥2189
|
|
DS-RF 12.8-36
|
12.8
|
36
|
0℃-+55℃
|
-40℃-+70℃
|
≥2536
|
|
DS-RF 12.8-39
|
12.8
|
39
|
0℃-+55℃
|
-40℃-+70℃
|
≥2605
|
|
DS-RF 12.8-42
|
12.8
|
42
|
0℃-+55℃
|
-40℃-+70℃
|
≥2952
|
|
DS-RF 12.8-48
|
12.8
|
48
|
0℃-+55℃
|
-40℃-+70℃
|
≥3021
|
|
DS-RF 12.8-51
|
12.8
|
51
|
0℃-+55℃
|
-40℃-+70℃
|
≥3091
|
|
DS-RF 12.8-54
|
12.8
|
54
|
0℃-+55℃
|
-40℃-+70℃
|
≥3160
|
|
DS-RF 12.8-60
|
12.8
|
60
|
0℃-+55℃
|
-40℃-+70℃
|
≥3229
|
Certifications
Why Choose Us
Company Profile
DISON group founded in 1993, with area of 102000 m2, building area of 66000 m2, total asset of1050 million RMB and 770 employees. DISON has more than 10 fully automated advanced production lines of lithium-ion batteries and Ni-MH batteries, with annual output of more than 150 million cells and 300,000 battery packs. DISON is a high-tech
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).
DISON products are widely used in Flashlights, Torch,fire emergency lighting, solar street lighting, State Grid, communication,energy storage, 5G station, medical, electric tools, electric bicycle, electric vehicle, drone, AI and many other fields. As battery enterprise, DISON participated in the drafting and relevant testing of the national standard <GB17945-2010 fire emergency lighting and evacuation indication system>, and participated in the drafting and compile of several national standards of lithium-ion batteries used for electric bicycles.
