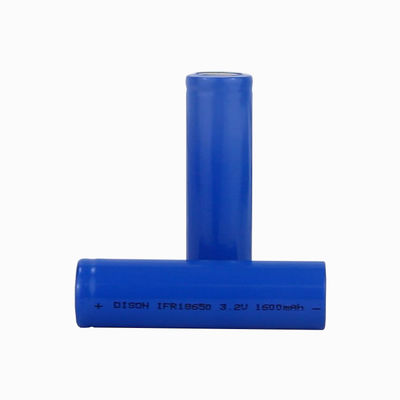

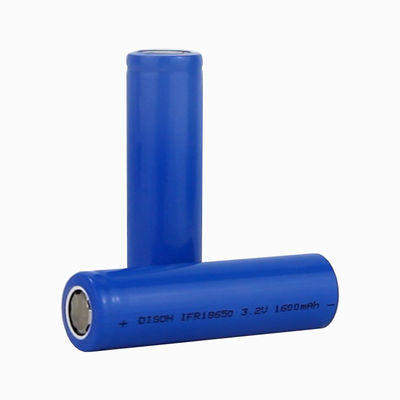

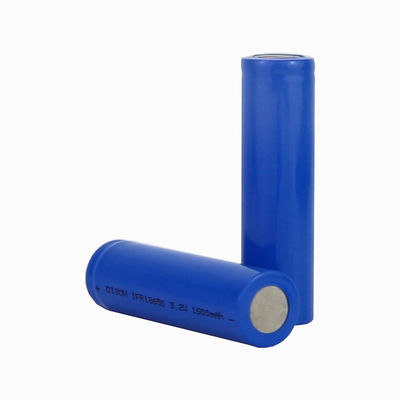

IFR 18650 3.2v 1600mAh LiFePO4 Cylindrical Lithium Ion Battery for Emergency Driver Endure 70C High Temperature
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery Size: | LiFePo4 18650 | Weight: | 42g |
|---|---|---|---|
| The Charging Ratio: | 0.1C | The Discharge Rate: | 0.2C |
| Anode Material: | LFP | Application: | Fire Emergency Lights, Solar Street Lighting, National Power Grid, Telecommunications, Power Storage, 5G Base Station, Electric Tools, Electric Bicycles, UAVs, Robot, Surveillance Cameras., Emergency Driver Solar Street Lighting, Robot, Camera |
| Battery Type: | Lifepo4 Battery | Product Name: | 3.2v 1500mAh Lithium Ion LiFePO4 Battery Cell |
| Capacity: | 1600mah | Nominal Voltage: | 3.2 Volt |
| Cycle Life: | 2000 Cycles | Dimension: | 18.0*65.0mm |
| Type: | LFP Cell | Warranty: | 3years |
| Chargeable: | Yes | Port: | Qingdao |
Product Overview
LFP18650 3.2v 1600mAh cylindrical Lithium ion LiFePO4 Battery Cells for emergency driver
*Using LiFePo4 as cathode material, cell voltage is 3.2V, platform capacity can reach more than 90%;
*Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
*Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
Application
LiFePo4 lithium ion battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in Fire emergency lights, Solar street lighting, National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch etc.
Product Specification
|
Type |
Typical capacity
mAh |
Min capacity
mAh |
Max Weight (g) |
Internal Resistance
(mΩ) |
Nominal Voitage (V) |
Diameter
(mm) |
Height
(mm) |
Max Discharging Rate |
|
IFR 14500
|
600
|
500
|
20
|
＜50
|
3.2
|
14±0.2
|
50±0.5
|
2C
|
|
IFR 18500
|
1200
|
1000
|
32
|
＜50
|
3.2
|
18±0.2
|
50±0.5
|
2C
|
|
IFR 18650
|
1600
|
1300
|
42
|
＜50
|
3.2
|
18±0.2
|
65±0.5
|
2C
|
|
IFR 21700
|
3000
|
2800
|
52
|
＜50
|
3.2
|
21±0.2
|
70±0.5
|
2C
|
|
IFR 22430
|
1600
|
1400
|
45
|
＜50
|
3.2
|
22±0.2
|
43±0.5
|
2C
|
|
IFR 22650
|
2200
|
2000
|
62
|
＜50
|
3.2
|
22±0.2
|
65±0.5
|
2C
|
|
IFR 26650
|
3600
|
3000
|
85
|
＜50
|
3.2
|
26±0.2
|
65.5±0.5
|
2C
|
