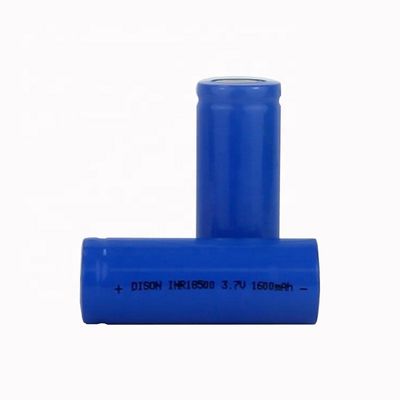

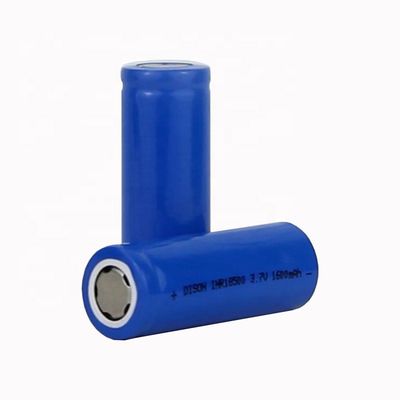

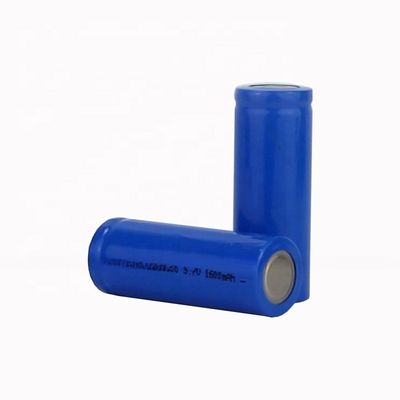

INR18500 3.7V 1.6Ah NMC Lithium Ion Li NiCoMh Battery Cells with self-protection PTC,CID
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery Size: | NMC 18500 | Weight: | 35g |
|---|---|---|---|
| The Charging Ratio: | 1C | The Discharge Rate: | 2C |
| Anode Material: | NCM | Application: | Uninterruptible Power Supplies, Telecommunications,Robotics,Robot Vacuum Cleaner,,UAVs, Portable Power Supply Etc, Ebike, Scooter, Robotics |
| Battery Type: | NMC Battery | Product Name: | 18500 Lithium Ion Cell |
| Capacity: | 1.6Ah | Nominal Voltage: | 3.7Volt |
| Cycle Life: | 800 Cycles | Internal Resistance: | 50(mΩ) |
| Max Discharge Rate: | 2C | Chargeable: | Yes |
| Warranty: | 3YEARS | Port: | Qingdao |
Product Overview
INR18500 3.7v 1.6Ah NMC Lithium ion Li NiCoMh battery cells
*NMC lithium ion battery using(Li(NiCoMn)O2)as cathode material, the discharge performance is superior, cycle life is 800-1000 times with residual capacity ＞80% of rated capacity;
* Charging and discharging performance at high temperature is good, discharge capacity at + 70 ℃ ＞ 100% of rated capacity.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 75%-80%. With more cells of the battery pack, the discharge efficiency will continue to increase.
* Charging and discharging performance at high temperature is good, discharge capacity at + 70 ℃ ＞ 100% of rated capacity.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 75%-80%. With more cells of the battery pack, the discharge efficiency will continue to increase.
Application
DISON LiNiCoMn lithium ion battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch,UPS, Robot vacuum cleaner, portable power supply. etc.
Product Specification
|
Model |
Typical capacity mAh |
Min capacity mAh |
Weight (g)
|
Resistance
(mΩ) |
Voitage
(V) |
Diameter (mm) |
Height (mm) |
Max Discharging Rate |
|
INR 14500
|
850
|
700
|
20
|
＜50
|
3.7
|
14±0.2
|
50±0.5
|
2C
|
|
INR 18500
|
1600
|
1400
|
35
|
＜50
|
3.7
|
18±0.2
|
50±0.5
|
2C
|
|
INR 18650
|
2800
|
2000
|
47
|
＜50
|
3.7
|
18±0.2
|
65±0.5
|
2C
|
|
INR 22430
|
2200
|
1800
|
46
|
＜50
|
3.7
|
22±0.2
|
43±0.5
|
2C
|
|
INR 22650
|
3200
|
2800
|
65
|
＜50
|
3.7
|
22±0.2
|
65±0.5
|
2C
|
|
INR 26650
|
4800
|
4200
|
92
|
＜50
|
3.7
|
26±0.2
|
65.5±0.5
|
2C
|
Certifications
Why Choose Us
Company Profile
DISON group founded in 1993, with area of 102000 m2, building area of 66000 m2, total asset of1050 million RMB and 770 employees. DISON has more than 10 fully automated advanced production lines of lithium-ion batteries and Ni-MH batteries, with annual output of more than 150 million cells and 300,000 battery packs. DISON is a high-tech
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).
DISON Lithium ion batteries are widely used in Flashlights, Torch,fire emergency lighting, solar street lighting, State Grid, communication,energy storage, 5G station, medical, electric tools, electric bicycle, electric vehicle, drone, AI and many other fields. As battery enterprise, DISON participated in the drafting and relevant testing of the national standard <GB17945-2010 fire emergency lighting and evacuation indication system>, and participated in the drafting and compile of several national standards of lithium-ion batteries used for electric bicycles.
