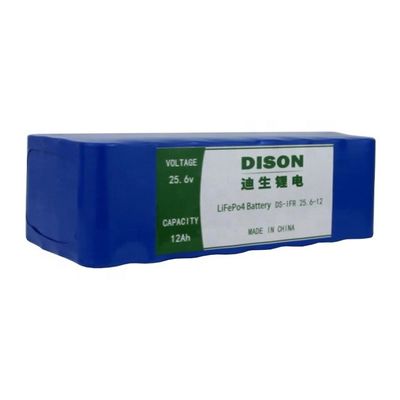

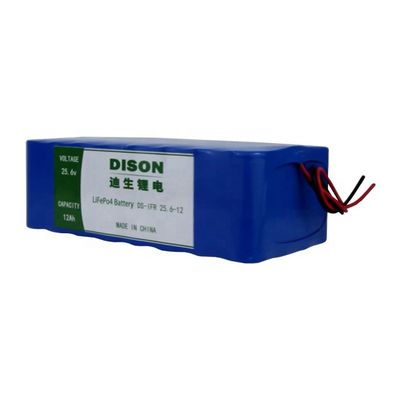

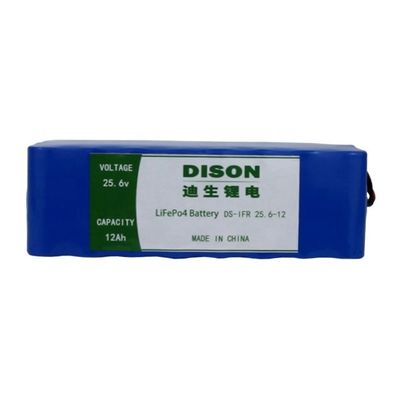

26650 25.6v 12Ah LiFePo4 Lithium Ion Phosphate Battery for Solar Energy Solution

Large Image : 26650 25.6v 12Ah LiFePo4 Lithium Ion Phosphate Battery for Solar Energy Solution Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	DISON
Certification:	CB
Model Number:	LFP26650

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$77.96/pieces >=1000 pieces
Packaging Details:	Carton case or packaged as per customer requirements
Supply Ability:	5000000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Battery Size:	26500	Weight:	2720kgs
The Charging Ratio:	2C, 1C	The Discharge Rate:	1C
Storage Type:	Under Normal Temperature	Anode Material:	LiFePo4
Application:	Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Surveillance Camera,solar ,robot, UPS	Battery Type:	Lifepo4 Battery
Product Name:	LFP Lithium Ion Battery Pack	Capacity:	12Ah
Nominal Voltage:	25.6Volt	Cycle Life:	2000 Cycles
Internal Resistance:	50(mΩ)	Max Discharge Rate:	2C
Warranty:	5years	Chargeable:	Yes
Port:	Qingdao

Product Overview

LFP 26650 25.6v 12Ah LiFePo4 Lithium ion phosphate battery pack for solar energy storage

*Using LiFePo4 as cathode material, cell voltage is 3.2V, platform capacity can reach more than 90%;
*LiFePo4 lithium ion Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.

Application

LiFePo4 lithium ion phosphate battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in Fire emergency lights, Solar street lighting, National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch,UPS, solar energy storage. etc.

Product Specification

Type	Nominal Voitage (V)	Typical capacity (Ah)	Charge temp	Work temp	Weight Max Weight (g)
DS-RF 25.6-7	25.6	7	0℃-+55℃	-40℃-+70℃	≥1360
DS-RF 25.6-9	25.6	9	0℃-+55℃	-40℃-+70℃	≥2040
DS-RF 25.6-12	25.6	12	0℃-+55℃	-40℃-+70℃	≥2720
DS-RF 25.6-15	25.6	15	0℃-+55℃	-40℃-+70℃	≥3400
DS-RF 25.6-18	25.6	18	0℃-+55℃	-40℃-+70℃	≥4080
DS-RF 25.6-21	25.6	21	0℃-+55℃	-40℃-+70℃	≥4760
DS-RF 25.6-24	25.6	24	0℃-+55℃	-40℃-+70℃	≥5440
DS-RF 25.6-27	25.6	27	0℃-+55℃	-40℃-+70℃	≥6120
DS-RF 25.6-30	25.6	30	0℃-+55℃	-40℃-+70℃	≥6800
DS-RF 25.6-36	25.6	36	0℃-+55℃	-40℃-+70℃	≥8160
DS-RF 25.6-42	25.6	42	0℃-+55℃	-40℃-+70℃	≥9520
DS-RF 25.6-48	25.6	48	0℃-+55℃	-40℃-+70℃	≥10880
DS-RF 25.6-54	25.6	54	0℃-+55℃	-40℃-+70℃	≥12240
DS-RF 25.6-60	25.6	60	0℃-+55℃	-40℃-+70℃	≥13600

Certifications

Why Choose Us

Dison guarantee high quality products.

28 years of R&D and production experience.

Among the top 10 battery manufacturers in China.

Fully automatic production line.

OEM & ODM service.

Prompt on-time delivery.

Service with heart .

Company Profile

DISON group founded in 1993, with area of 102000 m2, building area of 66000 m2, total asset of1050 million RMB and 770 employees. DISON has more than 10 fully automated advanced production lines of lithium-ion batteries and Ni-MH batteries, with annual output of more than 150 million cells and 300,000 battery packs. DISON is a high-tech
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).

DISON products are widely used in Flashlights, Torch,fire emergency lighting, solar street lighting, State Grid, communication,energy storage, 5G station, medical, electric tools, electric bicycle, electric vehicle, drone, AI and many other fields. As battery enterprise, DISON participated in the drafting and relevant testing of the national standard <GB17945-2010 fire emergency lighting and evacuation indication system>, and participated in the drafting and compile of several national standards of lithium-ion batteries used for electric bicycles.
