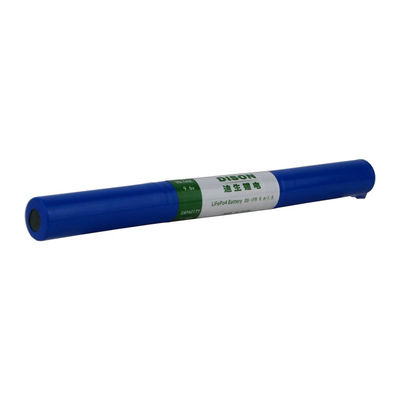

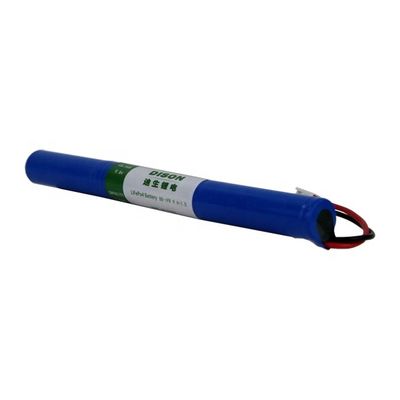

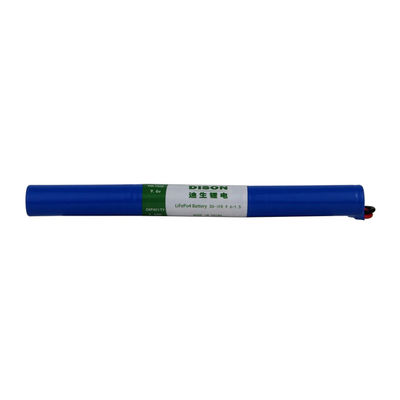

9.6v 1.5Ah LiFePo4 Battery for Emergency Lighting Energy Storage Type Lithium Ion battery
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery Size: | LiFePo4 18650 | Weight: | 126g |
|---|---|---|---|
| The Charging Ratio: | 1C | The Discharge Rate: | 2C |
| Anode Material: | LFP | Application: | Uninterruptible Power Supplies, Emergency Lighting |
| Battery Type: | Lifepo4 Battery | Product Name: | LiFePo4 Li-ion Battery Pack |
| Capacity: | 1.5Ah | Nominal Voltage: | 9.6 Volt |
| Cycle Life: | 2000 Cycles | Internal Resistance: | 50(mΩ) |
| Max Discharge Rate: | 2C | Warranty: | 5years |
| Chargeable: | Yes | Port: | Qingdao |
Product Overview
LFP 9.6v 1.5Ah LiFePo4 energy storage type Lithium ion phosphate battery pack for emergency lighting
*Using LiFePo4 as cathode material, cell voltage is 3.2V, platform capacity can reach more than 90%;
*LiFePo4 lithium ion Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
*LiFePo4 lithium ion Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
Application
LiFePo4 lithium ion phosphate battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in Fire emergency lights, Solar street lighting, National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch,UPS, solar energy storage. etc.
Product Specification
|
Type
|
Nominal Voitage (V)
|
Typical capacity (Ah)
|
Charge temperature
|
Work temperature
|
Weight Max Weight (g)
|
|
DS-RF 9.6-1.5
|
9.6
|
1.5
|
0℃-+55℃
|
-40℃-+70℃
|
≥126
|
|
DS-RF 9.6-3
|
9.6
|
3
|
0℃-+55℃
|
-40℃-+70℃
|
≥196
|
|
DS-RF 9.6-4.5
|
9.6
|
4.5
|
0℃-+55℃
|
-40℃-+70℃
|
≥274
|
|
DS-RF 9.6-6
|
9.6
|
6
|
0℃-+55℃
|
-40℃-+70℃
|
≥352
|
|
DS-RF 9.6-7.5
|
9.6
|
7.5
|
0℃-+55℃
|
-40℃-+70℃
|
≥430
|
|
DS-RF 9.6-9
|
9.6
|
9
|
0℃-+55℃
|
-40℃-+70℃
|
≥508
|
|
DS-RF 9.6-12
|
9.6
|
12
|
0℃-+55℃
|
-40℃-+70℃
|
≥664
|
|
DS-RF 9.6-15
|
9.6
|
15
|
0℃-+55℃
|
-40℃-+70℃
|
≥820
|
|
DS-RF 9.6-18
|
9.6
|
18
|
0℃-+55℃
|
-40℃-+70℃
|
≥976
|
|
DS-RF 9.6-21
|
9.6
|
21
|
0℃-+55℃
|
-40℃-+70℃
|
≥1132
|
|
DS-RF 9.6-24
|
9.6
|
24
|
0℃-+55℃
|
-40℃-+70℃
|
≥1288
|
|
DS-RF 9.6-27
|
9.6
|
27
|
0℃-+55℃
|
-40℃-+70℃
|
≥1444
|
|
DS-RF 9.6-30
|
9.6
|
30
|
0℃-+55℃
|
-40℃-+70℃
|
≥1600
|
|
DS-RF 9.6-36
|
9.6
|
36
|
0℃-+55℃
|
-40℃-+70℃
|
≥1912
|
|
DS-RF 9.6-42
|
9.6
|
42
|
0℃-+55℃
|
-40℃-+70℃
|
≥2224
|
Certifications
