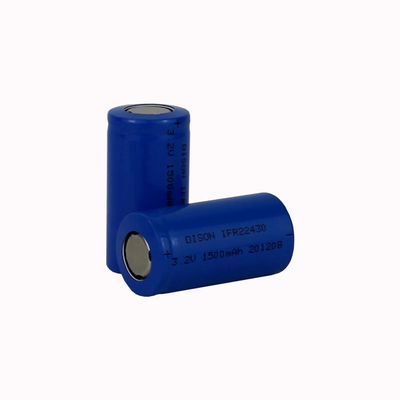

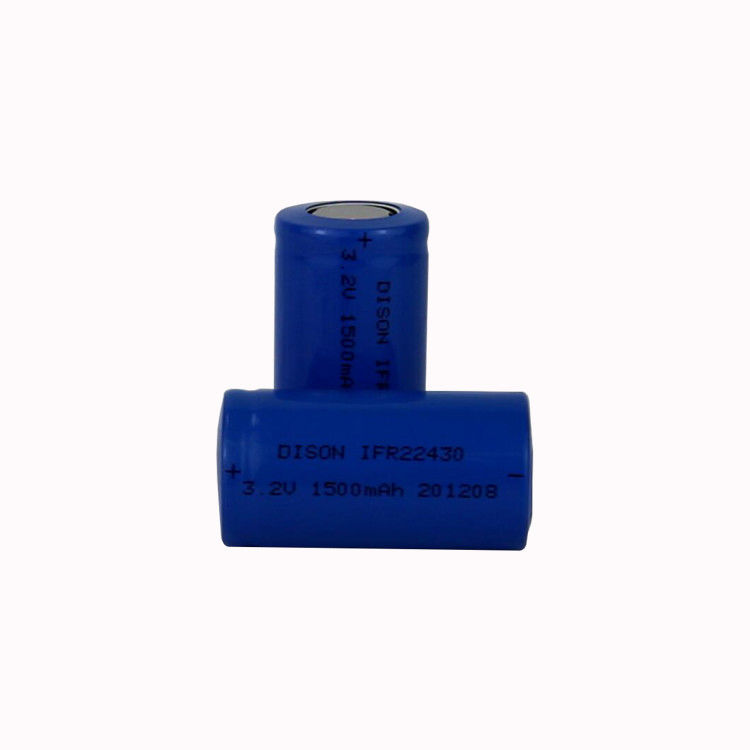

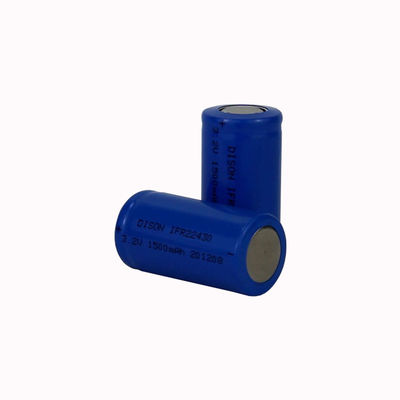

LiFePo4 Lithium Battery 22430 Cell 1500mAh for Wide Temperature Range Emergency Lighting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery Size: | LiFePo4 22430 | Weight: | 45g |
|---|---|---|---|
| The Charging Ratio: | 0.1C | The Discharge Rate: | 0.2C |
| Anode Material: | LFP | Application: | Flashlights,torch,Emergency Lighting, Home Appliances, Consumer Electronics, Electric Power System, Flashlights,torch,Emergency Lighting |
| Battery Type: | Lifepo4 Battery | Product Name: | 3.2v 1500mAh Lithium Ion LiFePO4 Battery Cell 22430 |
| Capacity: | 1500mah | Nominal Voltage: | 3.2 Volt |
| Cycle Life: | 2000 Cycles | Dimension: | 22.0*43.0mm |
| Working Temperature Range: | -40℃-+70℃ | Type: | 22430 Cell |
| Warranty: | 3years | Chargeable: | Yes |
| Port: | Qingdao |
Product Overview
3.2v 1500mAh Lithium-ion LiFePO4 Battery Cell 22430 for emergency lighting, torch
*Using LiFePo4 as cathode material, cell voltage is 3.2V, platform capacity can reach more than 90%;
*Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
*Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.
Application
LiFePo4 lithium ion battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in Fire emergency lights, Solar street lighting, National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch etc.
Product Specification
|
Type |
Typical capacity
mAh |
Min capacity
mAh |
Max Weight (g) |
Internal Resistance
(mΩ) |
Nominal Voitage (V) |
Diameter
(mm) |
Height
(mm) |
Max Discharging Rate |
|
IFR 14500
|
600
|
500
|
20
|
＜50
|
3.2
|
14±0.2
|
50±0.5
|
2C
|
|
IFR 18500
|
1200
|
1000
|
32
|
＜50
|
3.2
|
18±0.2
|
50±0.5
|
2C
|
|
IFR 18650
|
1600
|
1300
|
42
|
＜50
|
3.2
|
18±0.2
|
65±0.5
|
2C
|
|
IFR 21700
|
3000
|
2800
|
52
|
＜50
|
3.2
|
21±0.2
|
70±0.5
|
2C
|
|
IFR 22430
|
1600
|
1400
|
45
|
＜50
|
3.2
|
22±0.2
|
43±0.5
|
2C
|
|
IFR 22650
|
2200
|
2000
|
62
|
＜50
|
3.2
|
22±0.2
|
65±0.5
|
2C
|
|
IFR 26650
|
3600
|
3000
|
85
|
＜50
|
3.2
|
26±0.2
|
65.5±0.5
|
2C
|
Certifications
Why Choose Us
Company Profile
DISON group founded in 1993, with area of 102000 m2, building area of 66000 m2, total asset of1050 million RMB and 770 employees. DISON has more than 10 fully automated advanced production lines of lithium-ion batteries and Ni-MH batteries, with annual output of more than 150 million cells and 300,000 battery packs. DISON is a high-tech
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).
DISON History (1993 – 2021)
1993: Company establishment
2010: Take part in GB17945-2010 < Fire emergency lighting and evacuation indicator system > changing job
2012: Passed ISO9001-2008 and GB/T19001 Quality system change version certification.]
1993: Company establishment
2010: Take part in GB17945-2010 < Fire emergency lighting and evacuation indicator system > changing job
2012: Passed ISO9001-2008 and GB/T19001 Quality system change version certification.]
Product packaging
